| Protokoll | 10 Gigabit Ethernet |
| Hastighet | 10 Gbps |
| Nettverkstype | Ethernet 10GBase-T |
- Advanced throughput and latency performance
- Operates at 1 Gbps / 10 Gbps, auto-negotiation, on both ports
- 10GBase-T connectivity
- Up to a theoretical 20 Gbps bidirectional near line rate throughput per port
- Remote Direct Memory Access (RDMA) using internet Wide Area RDMA Protocol (iWARP)
- SR-IOV capable in hardware
- Support for Preboot eXecution Environment (PXE)
- Energy Efficient Ethernet (EEE) for low power consumption during periods of low data activity

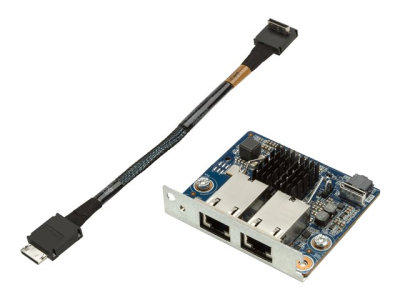

The HP Z 10GbE Dual Port Module is a 10GBase-T adapter utilizing the Intel X722 MAC and X557-AT2 PHY pairing to deliver full line-rate performance, utilizing CAT 6A UTP cabling. Providing high-performance Ethernet connectivity, it is ideal for use in workstation, virtual workstation and cloud computing environments. It supports enterprise class features (VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot) and virtualization features (VMware NetQueue and Microsoft VMQ). The module was developed to be a low-cost option without the need of a PCIe slot, which can help with network transitions to 10G.
